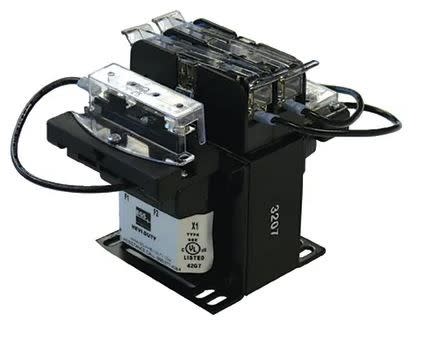

Sola E350EWB E350E+FBPC1+FB2X FACTORY WIRED

Sola Hevi Duty

0 Reviews

List Price: $300.24

$243.94

Savings: $56.30

E350EWB

Manufacturer:: Sola Hevi Duty

Product Code: E350EWB

Qty:

Description

IndustrialControlTransformers

TheSBE-Encapsulated,CopperWoundSeries

The SBEEncapsulatedindustrialcontroltransformers

areepoxyencapsulatedtosealthetransformerwindings againstmoisture,dirtandindustrialcontaminants.Extra deep,moldedterminalbarriersreducethechanceof electricalfailureastheresultofarcingorfrayedleadwires. TheruggedconstructionandprovenreliabilityoftheSBE designisuniquelysuitedforallindustrialenvironments.

Features

•50-1000VA,50/60 Hz–suitableforworldwide

applications.

•Interleavedcopper windingsreduceI2R losses

andmaximizeefficiency.

•55°CRise,105°Cinsulationsystemtominimizeheat

•Epoxyencapsulated toprotect cores andcoilsagainst

moisture,dirt,andothercontaminants.

•MeetsorexceedsNEMAStandardST-1andANSIC89.1

forloadinrushcapability.

•Integrallymolded, flameretardant(IEC707/ISOClass

1210) TerminalBlocksprovidegreaterterminalcontact areaandimprovedconductivity.

•Heavygauge steelmountingplate

•Mountingdimensionsarecompatiblewithsimilar

controltransformers.

•Secondaryfuseholders(FB2X)includedfor13/32 x1½

cartridges(fusesnotincluded).

•Factory-installed fuseholdersareavailable

(SeeW,WA&WBoptions).

•Tenyearlimitedwarranty

CertificationsandCompliances

• Listed:E77014

-UL506

-CSAC22.2No.66

•RoHSCompliant

RelatedProducts

•LinearPowerSupplies

•DINRailDCPowerSupplies

•ConstantVoltageTransformers

•SeeSBEAccessories

VA	Primary Fuse Holder Class "CC"			Dimensions
VA	W Option - Midget Type Catalog Number	WA Option - Type 3AG w/ Covers Catalog Number	WB Option - Midget Type w/ Covers Catalog Number	Height in (mm)	Width in (mm)	Depth in (mm)	Approx. Ship Weight lbs (kg)
50	E050EW	E050EWA	E050EWB	4.18(106.2)	3.01(76.5)	3.99(101.3)	3.0(1.36)
75	E075EW	E075EWA	E075EWB	4.41(112.0)	3.39(86.1)	4.36(110.7)	4.0(1.82)
100	E100EW	E100EWA	E100EWB	4.41(112.0)	3.39(86.1)	4.61(117.1)	5.0(2.27)
150	E150EW	E150EWA	E150EWB	5.36(136.1)	4.50(114.3)	4.48(113.8)	8.0(3.64)
200	E200EW	E200EWA	E200EWB	5.36(136.1)	4.50(114.3)	4.79(121.7)	10.0(4.55)
250	E250EW	E250EWA	E250EWB	5.36(136.1)	4.50(114.3)	5.21(132.3)	11.0(5.00)
300	E300EW	E300EWA	E300EWB	5.99(152.1)	5.25(133.4)	4.66(118.4)	12.0(5.45)
350	E350EW	E350EWA	E350EWB	5.99(152.1)	5.25(133.4)	5.07(128.8)	15.0(6.82)
500	E500EW	NA	E500EWB	5.99(152.1)	5.25(133.4)	5.75(146.1)	19.0(8.64)
750	E750EW	NA	E750EWB	7.01(178.1)	6.38(162.1)	6.93(176.0)	31.0(14.09)
